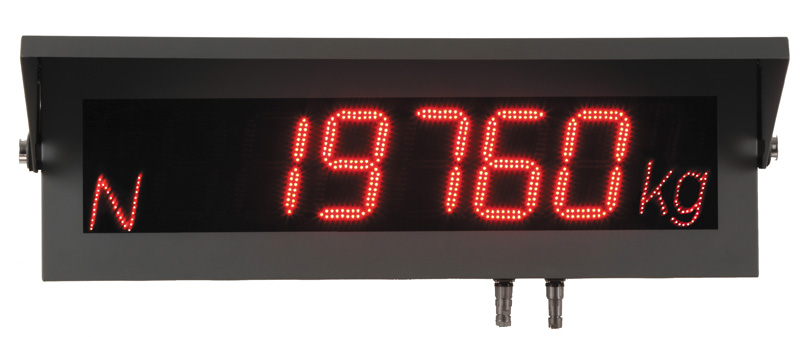

RD-65   Specifications

Enclosure: Powder Coated, Mild Steel
Non Glare Lens

Display:
Display Type:127 mm (5") 7 segment red LED display
Annunciators: kg, lb, G (gross), N (net)
Display Characters: 999,999 to -99,999

Communication Interface:
Serial Cable Length 10 m (32')
Serial Port: RS-232, RS-485 or Current Loop
Data Format: 8N1, 7E1 or 7O1
Baud Rate: 110, 300, 600, 1200, 2400, 4800, 9600 or 19200
Five Usable Input Protocols

Power:
Input: 120VAC , 60Hz
Transformer Output: 24VAC, 2 Amp (UL, Waterproof)
Current Draw: <1500mA
Fused: 2.0 amp

Shipping Specifications: Weight: 20 kg (45 lb)

Package Dimensions: 464 mm x 448 mm x 999 mm (39.3" x 18.3" x 17.6")

Warranty: One Year from Shipment

Product Code: 816965004638

RD-65 Features
